Velocity Time Graph: What the Slope, Area, and 4 Line Types Reveal About Motion

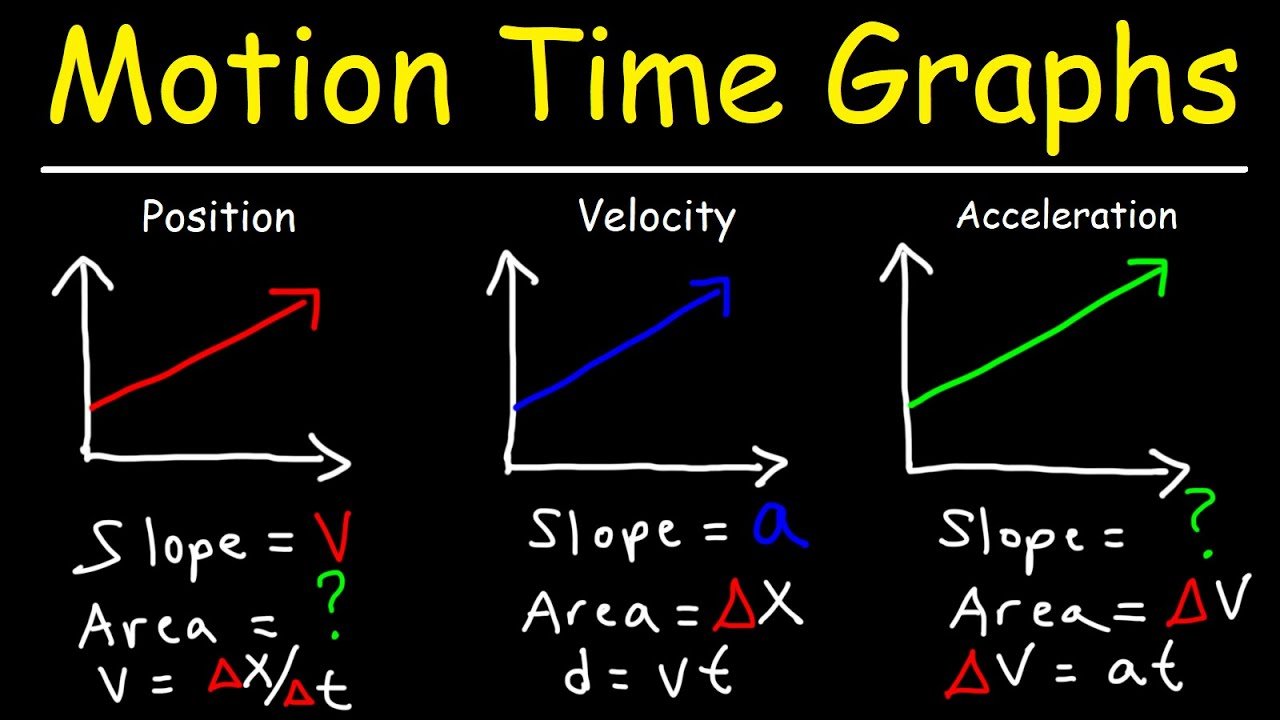

A velocity time graph plots velocity on the y-axis against time on the x-axis. The slope equals acceleration and the area under the graph equals displacement. It is one of 3 core motion graphs used in kinematics alongside position-time and acceleration-time graphs. When acceleration is constant, it is also the visual basis for the SUVAT equations.

For a supporting reference, Khan Academy’s velocity vs. time graphs guide explains how slope and area are interpreted on velocity-time graphs.

What Is a Velocity Time Graph?

A velocity time graph is a graphical representation of an object’s velocity over a period of time. Velocity is plotted on the vertical axis in metres per second (m/s), and time is plotted on the horizontal axis in seconds (s). Examples of motion represented on a velocity time graph include a car accelerating from a traffic light, a train braking at a station, and a ball thrown vertically upward.

Velocity is a vector quantity, meaning it has both magnitude and direction. A point above the x-axis represents positive velocity (forward motion). A point below the x-axis represents negative velocity (reverse or backward motion).

What Does the Slope of a Velocity vs Time Graph Represent?

The slope of a velocity time graph represents the object’s acceleration. Acceleration is calculated using the formula: a = Δv / Δt, where Δv is the change in velocity and Δt is the change in time. The unit of acceleration is metres per second squared (m/s²).

What Does a Positive Slope Mean on a Velocity Time Graph?

A positive slope means the object is accelerating. Velocity increases as time increases, and the steeper the slope, the greater the rate of acceleration. A slope of 4 m/s² means the object gains 4 m/s of velocity every second.

What Does a Negative Slope Mean on a Velocity Time Graph?

A negative slope means the object is decelerating. Velocity decreases as time increases, and the line moves downward from left to right. A car braking before a stop sign produces a negative slope on a velocity time graph.

What Does a Zero Slope Mean on a Velocity Time Graph?

A zero slope (horizontal line) means the object moves at constant velocity. Acceleration equals zero wherever the velocity time graph shows a flat horizontal line. A train cruising at 80 km/h between two stations produces this line shape.

What Are the 4 Types of Lines on a Velocity Time Graph?

There are 4 main line types on a velocity time graph. These are horizontal lines, straight lines with positive slope, straight lines with negative slope, and curved lines.

The table below defines each line type and its corresponding motion:

A curved line on a velocity time graph indicates non-uniform acceleration. The slope is changing at each point along the curve, meaning acceleration is not constant throughout the motion.

How Do You Calculate Acceleration from a Velocity Time Graph?

Acceleration equals the slope of the velocity time graph: a = (v₂ – v₁) / (t₂ – t₁). Select 2 clear points on the line, read their velocity and time values, and apply the formula. For example: if velocity increases from 2 m/s at t = 0 s to 10 m/s at t = 4 s, acceleration = (10 – 2) / (4 – 0) = 2 m/s².

A positive result confirms acceleration. A negative result confirms deceleration. A result of zero confirms constant velocity.

What Does the Area Under a Velocity Time Graph Equal?

The area under a velocity time graph equals the displacement of the object during that time interval. Displacement is the change in position from start to end, measured in metres (m). It is not the same as distance, which counts total path length regardless of direction.

How Do You Calculate the Area Under a Velocity Time Graph?

The shape formed between the graph line and the x-axis determines which area formula to apply. There are 3 formulas used:

1. Rectangle: Area = base × height (used when velocity is constant throughout the interval)
2. Triangle: Area = ½ × base × height (used when velocity starts or ends at zero)
3. Trapezoid: Area = ½ × (v₁ + v₂) × t (used when velocity changes uniformly between 2 non-zero values)

For example: an object accelerates uniformly from 0 m/s to 20 m/s over 5 seconds. The area formed is a triangle. Displacement = ½ × 5 × 20 = 50 metres.

If the graph line dips below the x-axis, that area represents negative displacement (motion in the reverse direction). Subtract negative areas from positive areas to find net displacement.

What Is the Difference Between a Velocity vs Time Graph and a Speed Time Graph?

A velocity time graph plots velocity (a vector quantity) against time. A speed time graph plots speed (a scalar quantity) against time. Speed has no direction and is always positive or zero, so the line on a speed time graph never goes below the x-axis.

How Does a Velocity Time Graph Relate to a Position Time Graph?

A velocity time graph and a position time graph represent the same motion from different perspectives. The slope of a position time graph gives velocity. The slope of a velocity time graph gives acceleration.

There are 2 key relationships between the two graphs:

1. A horizontal line on a velocity time graph (constant velocity) produces a straight diagonal line on a position time graph.
2. A straight sloped line on a velocity time graph (uniform acceleration) produces a curved, parabolic line on a position time graph.

What Are Real-World Examples of Velocity Time Graphs?

There are 4 common real-world scenarios represented on velocity time graphs. These include a car accelerating, a car braking, a ball thrown upward, and a train journey between stations.

1. Car accelerating from a traffic light: the line starts at zero and rises with a constant positive slope. If the slope is straight, acceleration is uniform.

1. Car braking to a stop: the line falls with a negative slope and reaches zero velocity on the x-axis. Steeper slope means sharper braking.

1. Ball thrown vertically upward: velocity starts positive, decreases to zero at the peak, then continues into negative values as the ball falls. The slope stays constant at -9.8 m/s² throughout, because gravity acts uniformly in the downward direction.

1. Train between 2 stations: the graph shows 3 phases. A positive slope during acceleration from the first station, a horizontal line during constant-speed cruising, then a negative slope during braking into the second station.

How Do You Read a Velocity Time Graph Step by Step?

Reading a velocity time graph involves 5 steps:

1. Identify the axes: y-axis is velocity in m/s, x-axis is time in seconds.
2. Find the velocity at any moment by reading the y-axis value at the corresponding time on the x-axis.
3. Calculate acceleration by finding the slope between 2 points: (v₂ – v₁) / (t₂ – t₁).
4. Identify the type of motion from the line shape: horizontal means constant velocity, positive slope means acceleration, negative slope means deceleration, and a curve means changing acceleration.
5. Find displacement by calculating the area between the line and the x-axis for the required time interval using the appropriate area formula.

How Does a Velocity Time Graph Differ from an Acceleration Time Graph?

A velocity time graph and an acceleration time graph both describe motion, but they plot different quantities. There are 3 key differences between the two:

1. The slope of a velocity time graph gives acceleration (m/s²). The slope of an acceleration time graph gives jerk, which is the rate of change of acceleration (m/s³).
2. The area under a velocity time graph gives displacement (m). The area under an acceleration time graph gives the change in velocity (m/s).
3. A horizontal line on an acceleration time graph (constant acceleration) corresponds to a straight sloped line on a velocity time graph.

According to Khan Academy, the area under a velocity vs time curve, regardless of shape, equals the object’s displacement during that time interval. This relationship makes the velocity time graph the primary tool for calculating both acceleration and displacement from a single graph.
